Products >> Crane >>

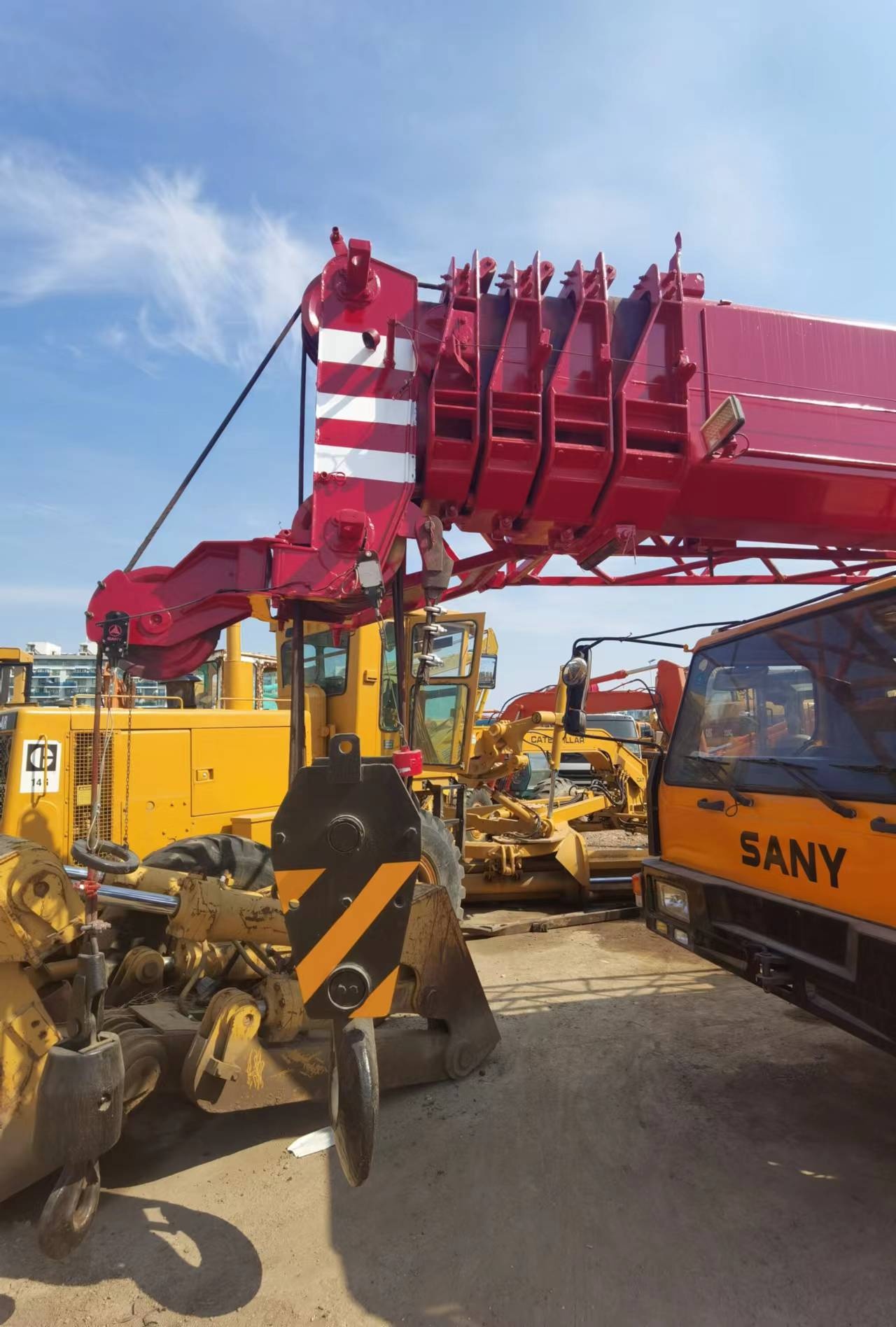

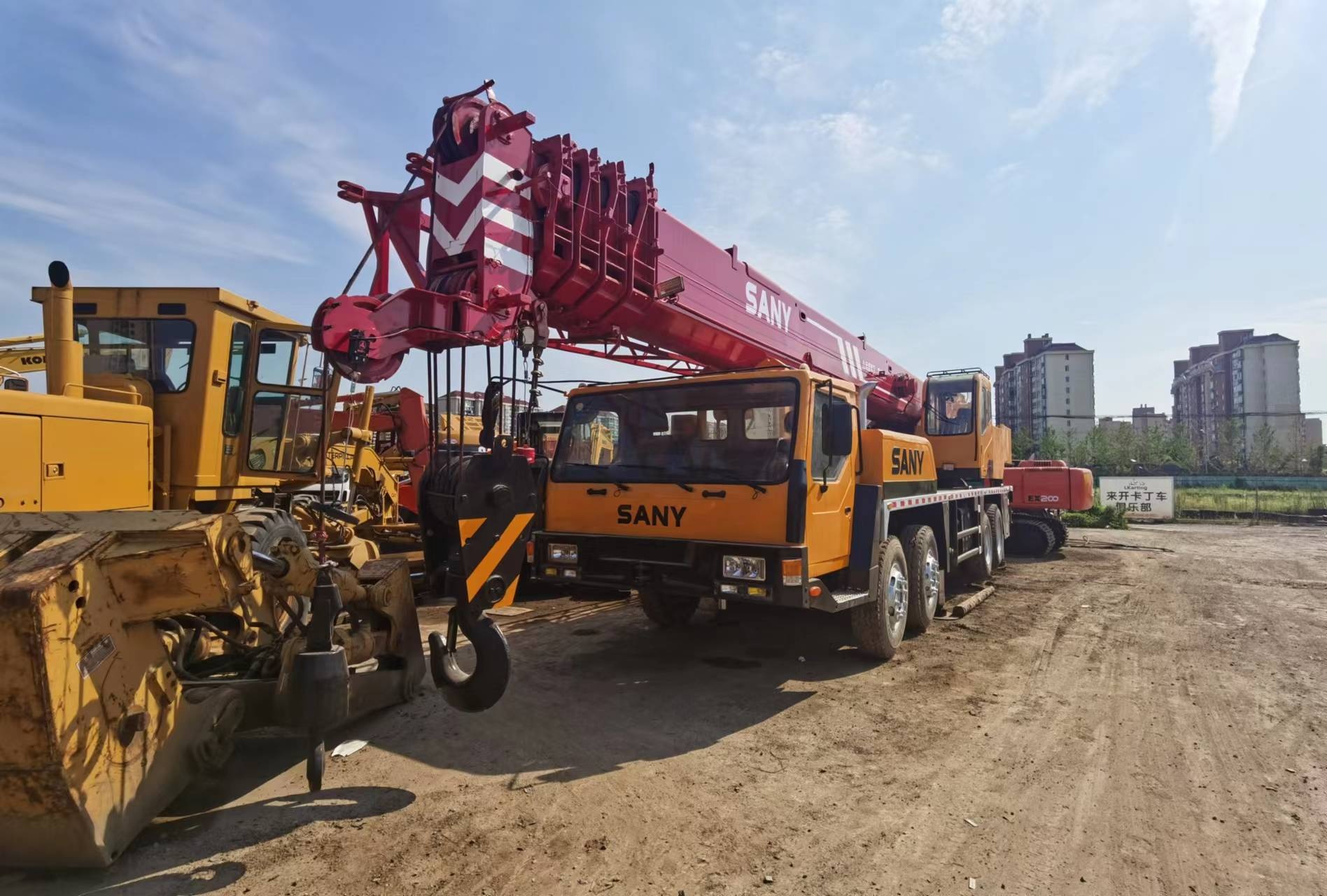

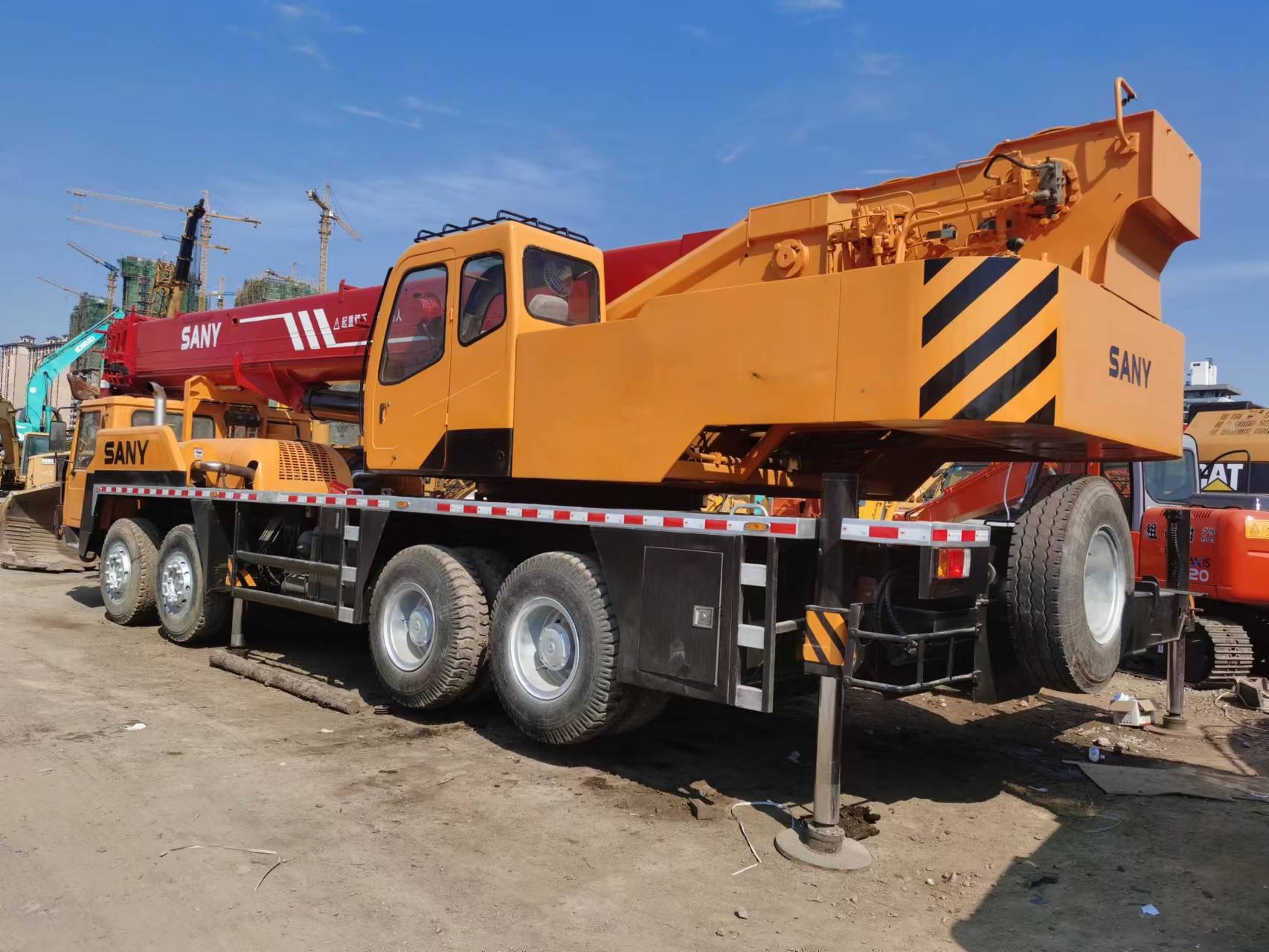

SANY QY50C
- Product No.：2022117134238
model:
QY50C
Overall size: length x width x height:
13.750×2.750×3.650m
Wheelbase: 1450/3850/1350mm
Working weight: 50 tons
Total counterweight: 42 tons
Maximum driving speed: 76km/h
Minimum turning radius: 12 meters
Maximum grade: 35%
Approach/Departure: 18/12 degrees
Minimum ground clearance: 342mm
Engine model: Dongfeng Cummins ISLe310 30
Maximum output power: 228kW
Rated speed: 2200rpm
Rated lifting weight: 50 tons
Rated lifting moment: 1788.5KN.m
Maximum lift height - basic boom: 12 meters
Maximum lifting height - basic arm + jib: 58.8 meters
Boom Length - Basic Boom: 11.5m
Boom length - basic arm + jib: 58.5 meters
Jib boom installation angle: 30 degrees
Boom full extension time: 120 seconds
Boom full up/down time: 80/60 seconds
Rotation speed: 2r/min
Outrigger span: vertical × horizontal: 7.2 × 6.0 meters
Previous Product：QY70K XCMG mobile
